Modular Process Skid & Systems

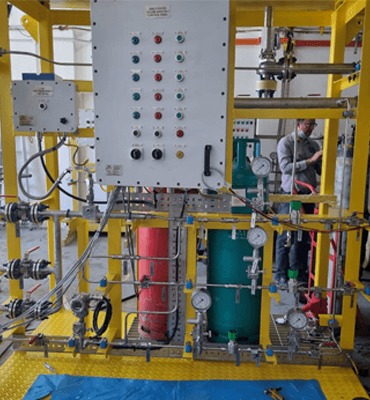

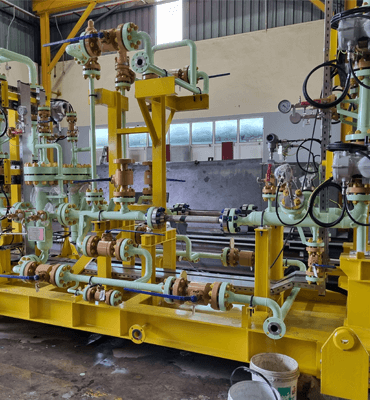

A modular skid or modular process skid is a self-contained process system contained within a frame or module including
equipment, piping, and instrumentation. This is basically a machine in a box design. To reduce delays resulting from
long lead times of equipment, on-site fabrication process, and to-and-fro communication between vendors, many organizations
are preferring the modular skid design that reduces project time and increases profit.
How Can We Help?
We offer custom fabrication of complete process systems into skidded modular process systems, creating compact,
efficient and ergonomic work environments while reducing downtime at installation and start-up. With our user friendly
operation and panels, you receive on-site training and flexible design combined into existing equipment.
Modular process skids can provide a robust, cost-efficient alternative to traditional process systems and equipment
Features of Modular Skid Design
Portable Robust Design
- Modular skid systems must be designed to provide robust design built within frames. They shall be easy
to transport.
Small Footprint
- The design of modular process skids are compact. They fit into a smaller footprint combining the
piping, tanks, instrumentation, and necessary process equipment.
Easier Process Connection
- By gathering all process connections into one spot on the skid, the modular skid design makes plant
connections easier.
Controlled Assembly
- As the modular process skids are manufactured in controlled conditions offsite, the existing operations
remain unaffected by skid fabrication.
FAT Testing before Installation
- Before modular process skids are shipped to the site, the required factory acceptance testing (FAT)
is completed which in turn reduces on-site startup time.
Accessible Layout
- All modular process skids are designed considering accessibility and major pieces of equipment placed
around the edge of the frame.
How It Work?
1
Consult
We receive your inquiries,
get to know your needs and requirements.
2
Plan
We will start planning and drafting
the proper equipments and procedures
for the project.
3
Execute
The project will be executed on your
request until job completion.
